4 Post Hoist – 4 Ton Standard

In Stock

5.0 (11 reviews)

$3,800.00 (inc. GST)

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.


Overview


Dimensions suit shed/ workshop use


Single phase 240v motor as standard


Many optional accessories available


4 Ton rating will lift 4WD vehicles with ease


Minimum 3.5 metre ceiling height required

Australia’s best selling 4 Post Hoist. Useful for working on cars and increasing storage space in your shed — It’s the perfect choice for commercial workshops and car enthusiasts alike.

4 Post Hoist Features

  • 4000kg/ 4 ton safe load limit
  • Lifting height of 1.9m
  • A single hydraulic cylinder lifts the runways by pulling the cables
  • Runways can be adjusted between two track settings by removing 4 bolts and sliding one over
  • Keep your car off the ground away from being dented, scratched and touched
  • Durable powder coated finish

Safety Features

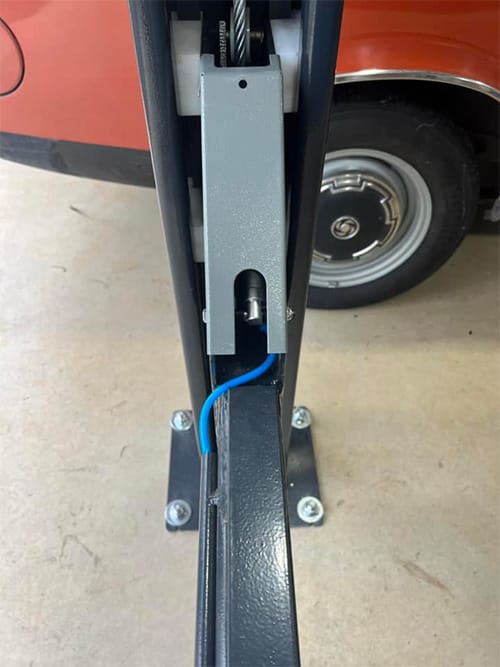

  • 4 point pneumatic safety lock releases
  • Additional secondary safety lock when weight comes off the cables
  • Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
  • Heavy duty 6mm thick cross beams and 5mm thick runways
  • 10mm steel wire rope equalising cables
  • Anti-surge valve in the hydraulic power unit

What’s Included?

  • 4 post hoist with all bolts, cables, lines and fixings

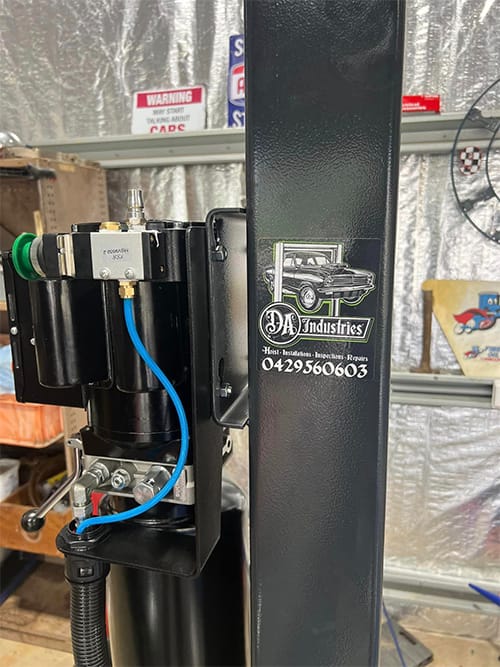

  • 240V single phase hydraulic power unit
  • Concrete anchor bolts
  • Detailed installation instructions

What’s Not Included?

  • Hydraulic oil
  • Setup of power units electrical connection
  • Compressed air supply

Optional Accessories

Shed Requirements

  • 150mm deep concrete at 32mpa
  • Minimum ceiling height of 3.5m

Warranty & Certifications

  • 3 year Australian warranty* includes structure, hydraulics & electrics
  • Australian WorkSafe registered design
  • CE certification

4 Post Hoist Warranty

3 Years WarrantyWhen you purchase a car hoist from us you can guarantee that you are investing in a quality product with the support to match it.

Our 4 Post Hoists come with 3 years warranty* for complete peace of mind.

* Joel’s Garage Gear offers 3 years parts only warranty on all car hoists. Warranty claims do not cover incorrect use or installation. See our Terms & Conditions for more information.


Buy Now, Pay Later & Interest Free Finance Options Available

Own it now, Pay later with Zip. Choose repayments that suit your lifestyle

Zip - Own it now, Pay later

Need your equipment now? We offer 12 Months Interest Free Finance*

Humm 90

Specifications

4 Post Hoist Standard Model

MOTOR SPECS240V 20A SINGLE PHASE
CLEARANCE BETWEEN POSTS2715MM
MAX TABLE HEIGHT1900MM
POST HEIGHT2230MM
OVERALL WIDTH INCLUDING PUMP3300MM
OVERALL LENGTH NOT INCLUDING RAMPS WHEN DOWN4405MM
OVERALL LENGTH INCLUDING RAMPS WHEN DOWN5165MM
TABLE LENGTH4055MM
EACH TABLE WIDTH480MM
N.W/ G.W770KGS/ 785KGS
MINIMUM CONCRETE THICKNESS150MM

Material Thickness

CABLES10MM
CROSS BEAMS6MM
RUNWAYS5MM
COLUMNS4MM

Freight Information

HOIST434CM71CM56CM
TOTAL WEIGHT785KG

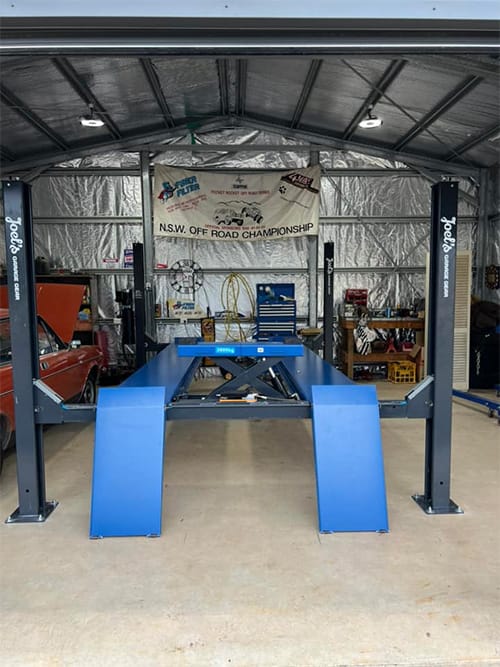

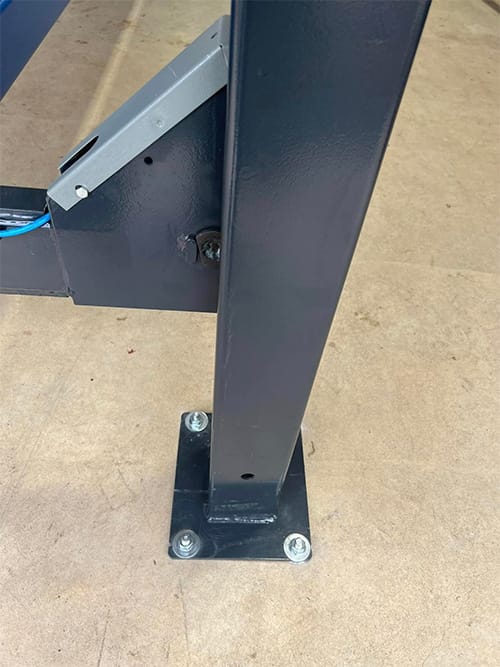

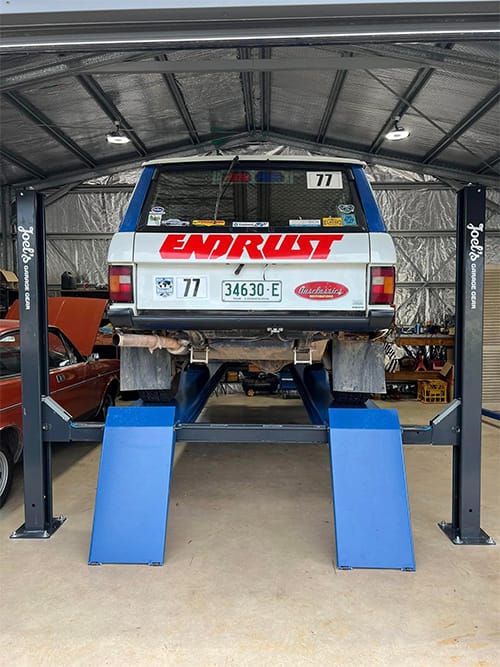

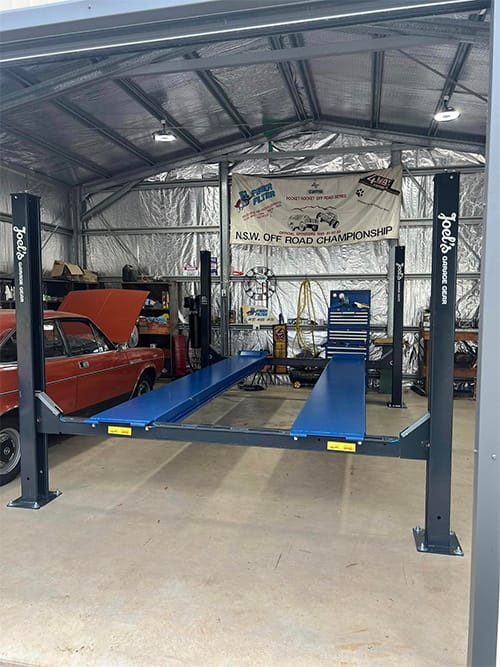

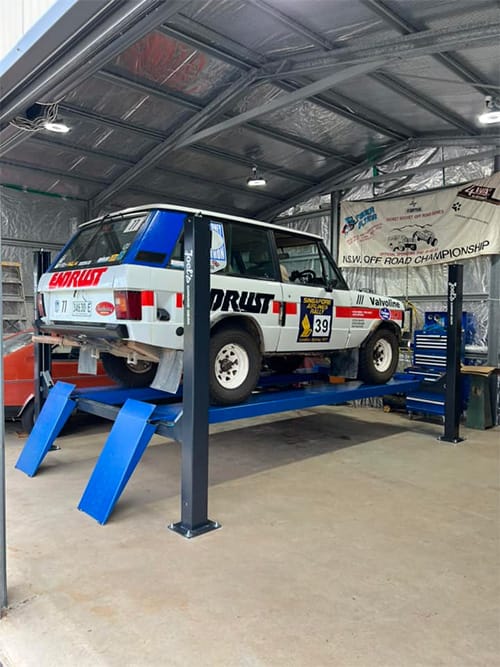

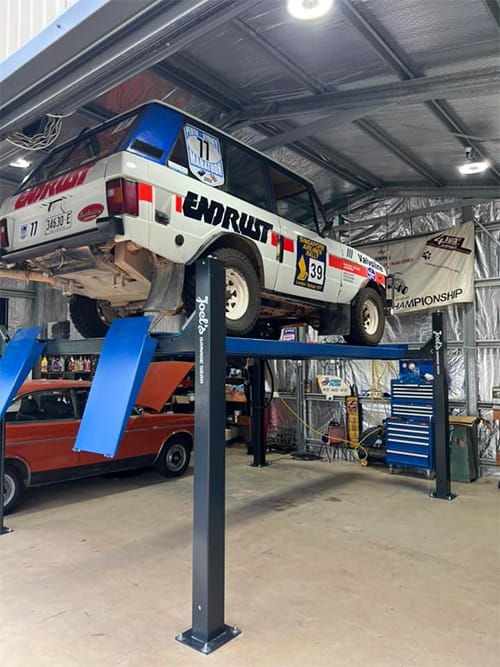

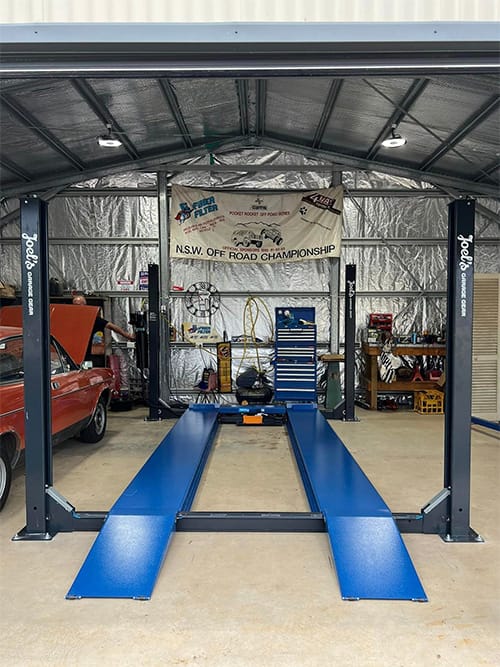

Product Photos

Downloads

Step By Step Guide

Installation Guide

WorkSafe Registration Notice

11 reviews for 4 Post Hoist – 4 Ton Standard

  1. Noel Ballagh

    Installed this four post hoist from Joel’s a few weeks ago. Easy to assemble. Works very well. No more crawling under the cars 👍. The blokes at Joel’s Garage Gear are exceptionally helpful. Great to deal with!

    Verified purchase from Melbourne VIC

  2. Mark Thomas

    Best thing I’ve spent my money on! I work from home rebuilding automatic transmissions, so no more crawling on the ground. I’m very happy with the overall quality. Cheers Joel’s Garage Gear!

    Verified purchase from Melbourne VIC

  3. Peter Carter

    Excellent bunch of guys, nothing was a problem. Great customer service and no issues with numerous questions during the installation of my 4 post hoist. I would totally recommend this company and its products. Thanks again guys!

    Verified purchase from Sydney NSW

  4. Andrew Bowey

    Recently purchased my hoist from these guys. Had to ship it interstate. There was a little confusion over delivery, but Joel’s Garage Gear sorted it straight away. Really good after-sales/ customer service 👌

    Verified purchase from Adelaide SA

  5. Peter Reed

    Installed my new 4 Ton 4 Post Hoist with no problems. Thanks to the guys at Joel’s Garage Gear.

    Verified purchase from Adelaide SA

  6. Ralph Biagi

    Got my hoist a few weeks back from Joel’s, very happy! 👍

    Verified purchase from Adelaide SA

  7. Matthew Foord

    I purchased this 4 post hoist. Works a treat. 👌

    Verified purchase from Adelaide SA

  8. Tristan Hunt

    I love my hoist, really good quality.

    Verified purchase from Melbourne VIC

  9. Amelia Falzon

    Can’t thank you enough! Amazing service and an amazing hoist. Can highly recommend to anyone. Thanks again.

    Verified purchase from Melbourne VIC

  10. James Brewis

    Great products and awesome customer service!

    Verified purchase from Canberra ACT

  11. John Billing

    Thanks Joel’s Garage Gear, great 4 post hoist!

    Verified purchase from Perth WA
