2 Post Hoist Base Plate

In Stock

2 Post Hoist – 4 Ton Base Plate

In Stock

$2,950.00 (inc. GST)

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.


SKU: JGG-40SF Categories: , ,

Overview


Dimensions suit home garage/ shed use


Single phase 240v motor as standard

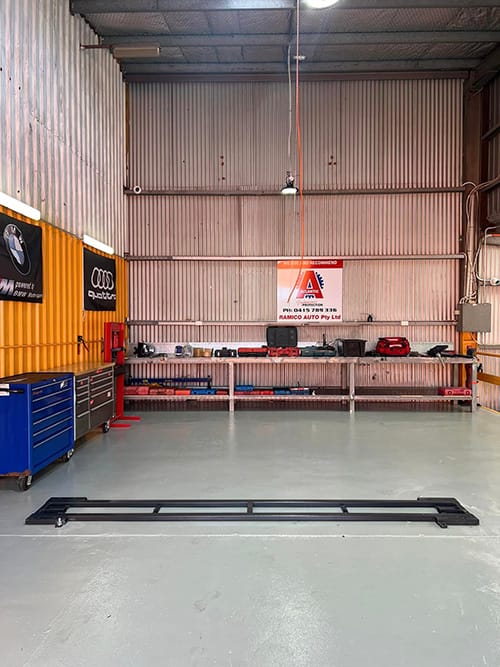

Sub-frame provides additional safety


4 Ton rating will lift 4WD vehicles with ease


Minimum 3 metre ceiling height required
This base plate model 2 Post Hoist is built tough to suit a wide range of vehicles — It’s a great solution for home mechanics and workshops that are limited by lower ceiling heights.

Base Plate Hoist Features

  • 4000kg/ 4 ton safe load limit
  • Lifting height of 1.9m (plus screw pad adjustment and raising adapters)
  • Dual hydraulic cylinders with chain driven carriages
  • Adjustable screw pads and 4 additional raising adapters are included
  • Strong single piece column design
  • Durable powder coated finish
  • Rubber door protectors

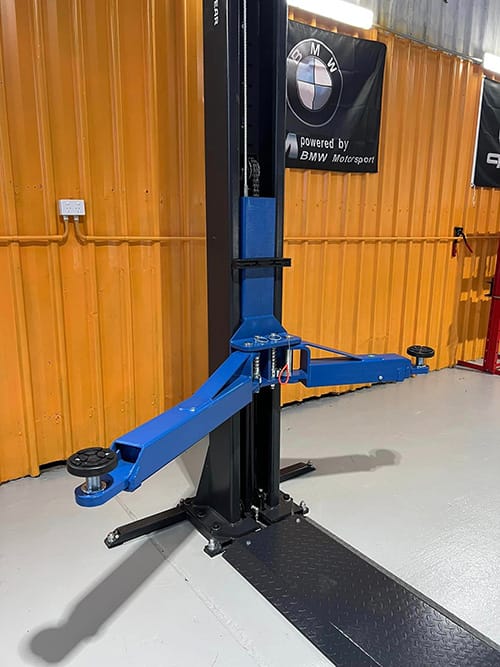

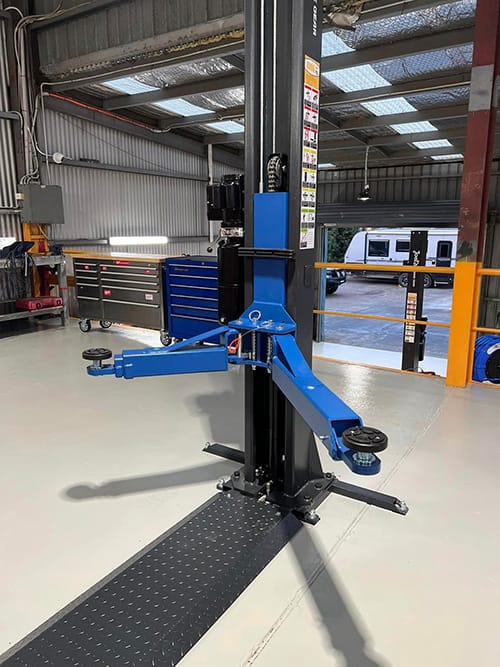

  • Symmetric two and three stage arms

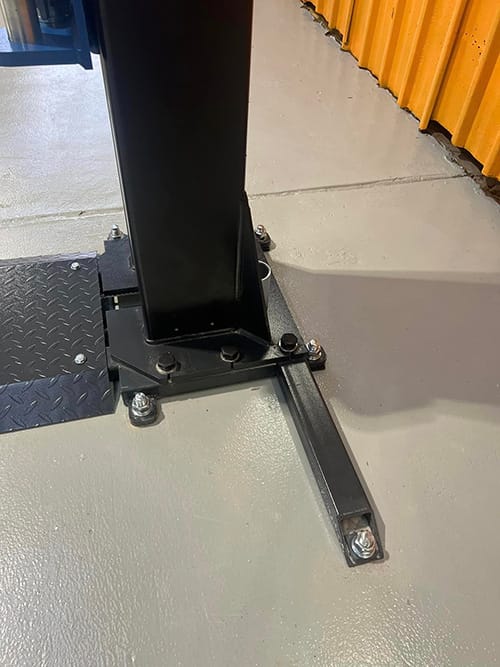

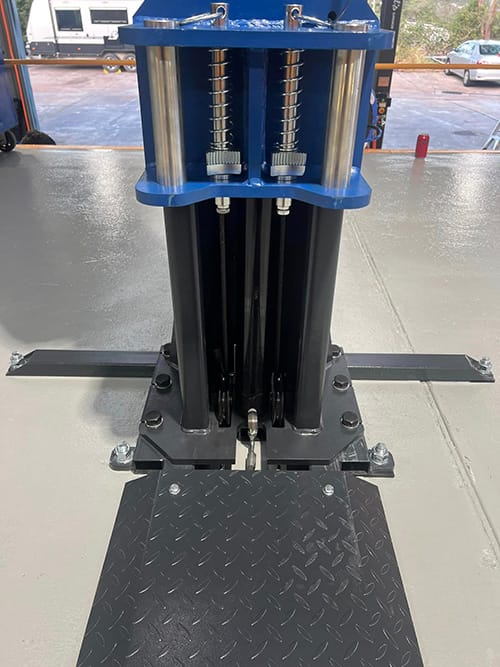

  • Low profile 50mm high base plate

Safety Features

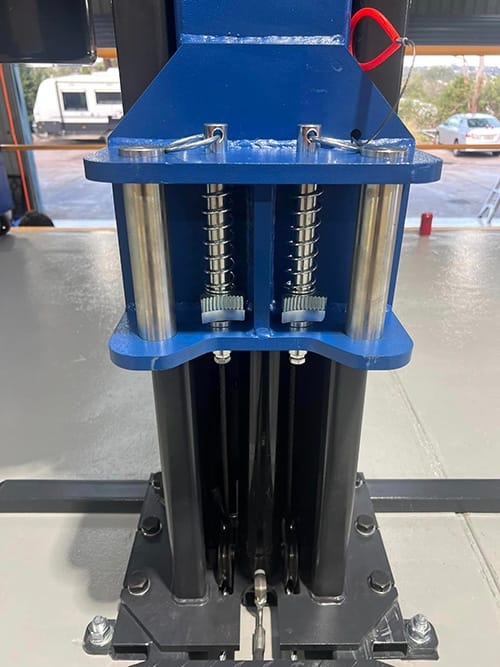

  • Manual safety locking system with safety latches in each column
  • Dual point release system
  • Heavy duty 6mm thick columns & carriages
  • 10mm steel wire rope equalising cables
  • Anti-surge valve in the hydraulic power unit

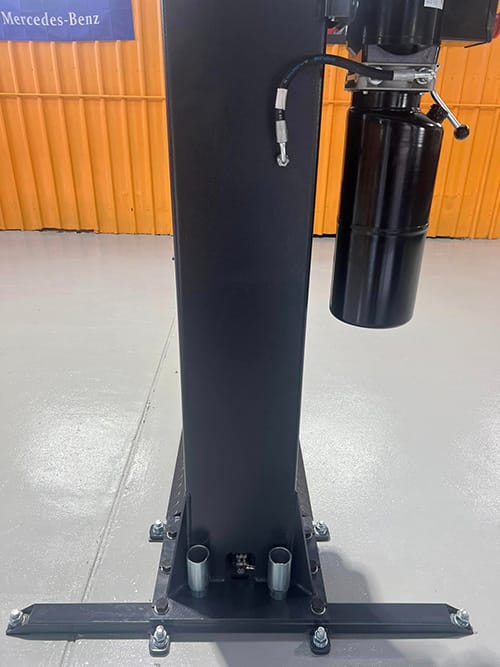

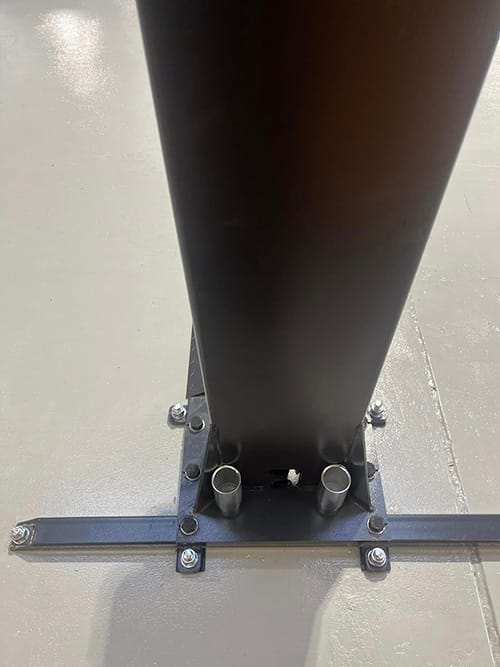

  • Sub-frame design provides additional safety

What’s Included?

  • 2 post hoist with all bolts, cables, lines and fixings

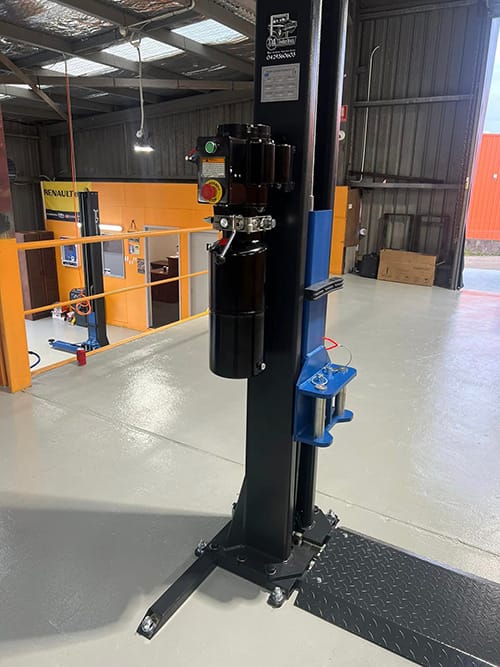

  • 240V single phase hydraulic power unit

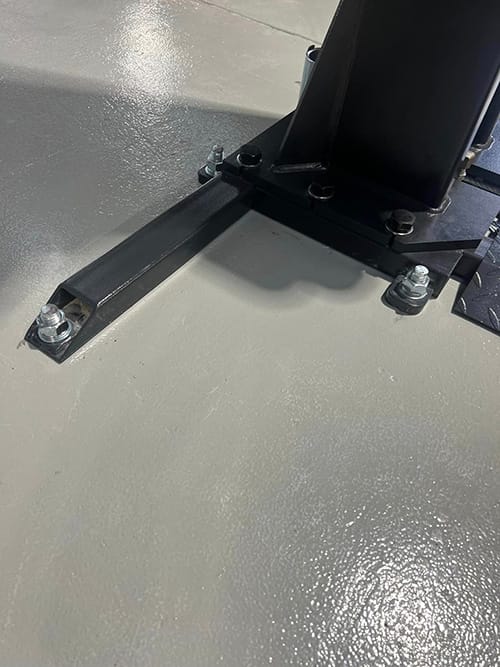

  • Concrete anchor bolts
  • Detailed installation instructions

What’s Not Included?

  • Hydraulic oil
  • Setup of power units electrical connection

Shed Requirements

  • 150mm deep concrete at 32mpa
  • Minimum ceiling height of 3m

Warranty & Certifications

  • 3 year Australian warranty* includes structure, hydraulics & electrics
  • Australian WorkSafe registered design
  • CE certification

2 Post Hoist Warranty

3 Years WarrantyWhen you purchase a Car Hoist from us you can guarantee that you are investing in a quality product with the support to match it.

Our Car Hoists come with 3 years warranty* for complete peace of mind.

* Joel’s Garage Gear offers 3 years parts only warranty on all Car Hoists. Warranty claims do not cover incorrect use or installation. See our Terms & Conditions for more information.

Flexible Payment Options Available

Own it now, Pay later with Zip. Choose repayments that suit your lifestyle.

Zip - Own it now, Pay later

Need your equipment now? We offer 12 Months Interest Free Finance*

Humm 90 - 12 Months Interest Free Finance*

Pay in monthly instalments upto 24 months! Available only to eligible ABN holders.

Procuret - Pay in 3 installments*

Specifications

2 Post Subframe Hoist Dimensions

MOTOR240V 20A SINGLE PHASE
STROKE1854MM
OVERALL HEIGHT2866MM
OVERALL WIDTH3477MM
DRIVE THROUGH CLEARANCE2460MM
BASE PLATE DRIVE OVER HEIGHT50MM
LIFTING ARM MINIMUM LENGTH685MM
LIFTING ARM MAXIMUM LENGTH1208MM
LIFTING PAD MINIMUM HEIGHT119MM
LIFTING PAD MAXIMUM HEIGHT168MM
LIFTING TIME50 SECONDS
N.W./ G.W680KGS/ 700KGS
MINIMUM CONCRETE THICKNESS150MM

Material Thickness

CABLES10MM
COLUMNS6MM
CARRIAGES6MM

Freight Information

HOIST320CM110CM56CM
TOTAL WEIGHT730KG

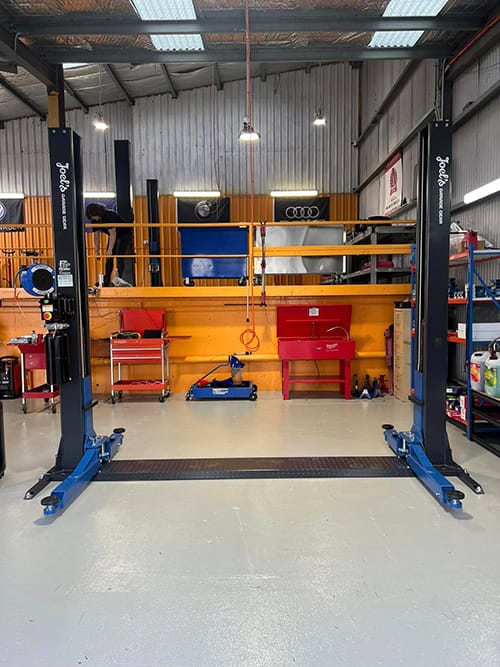

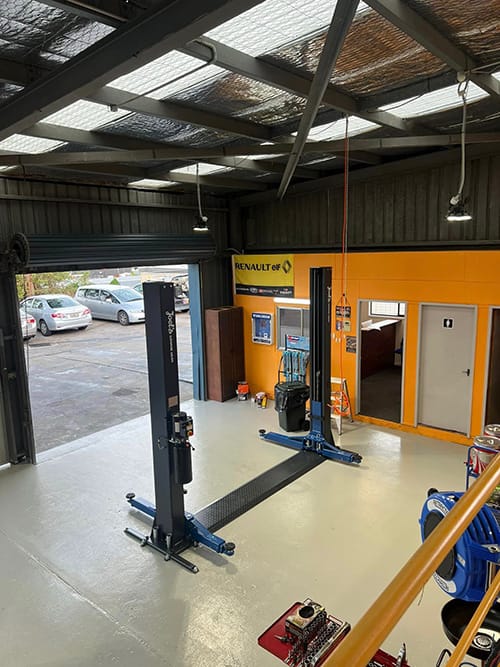

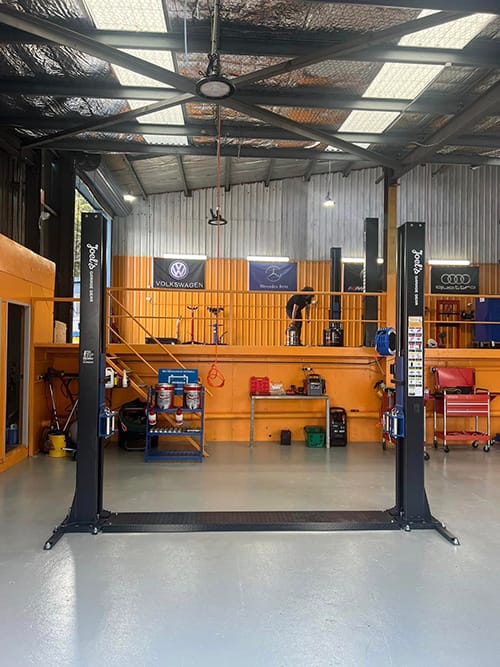

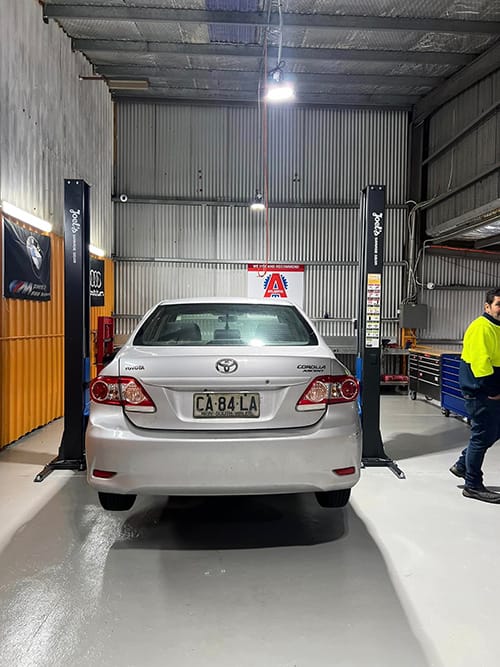

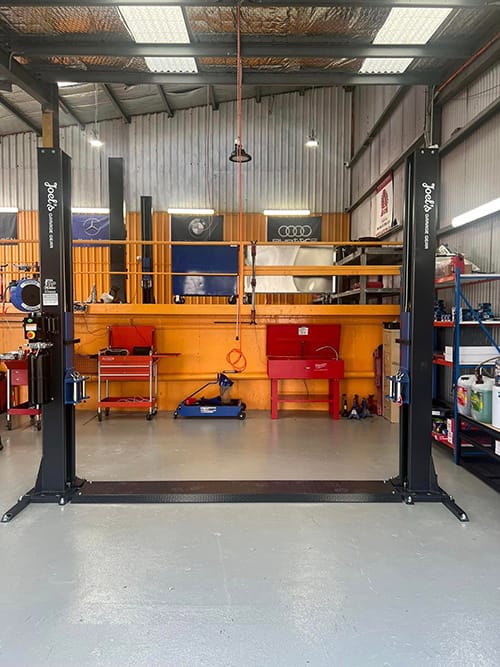

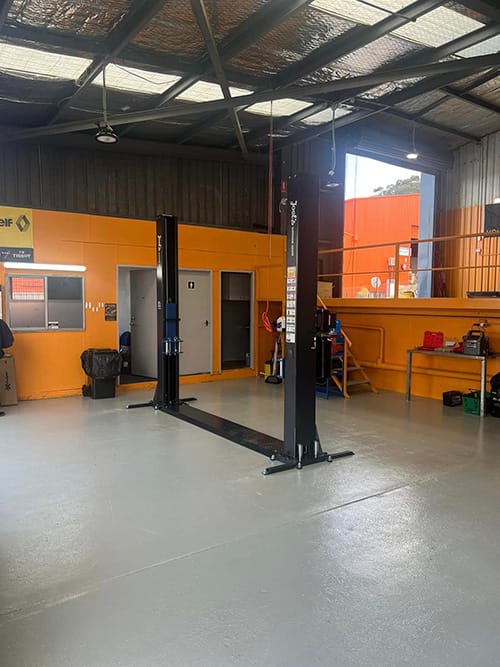

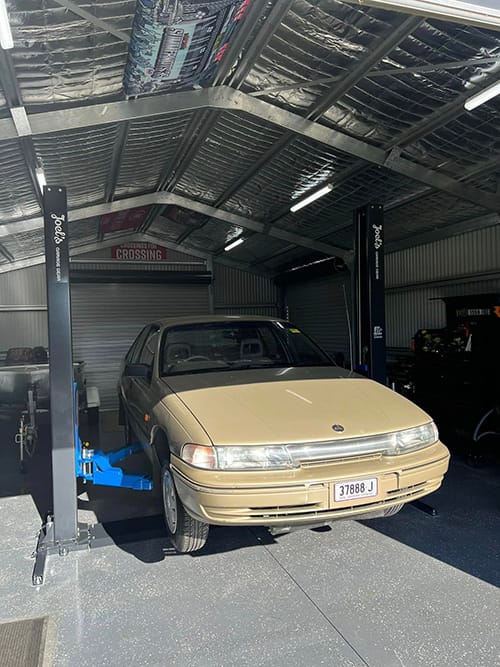

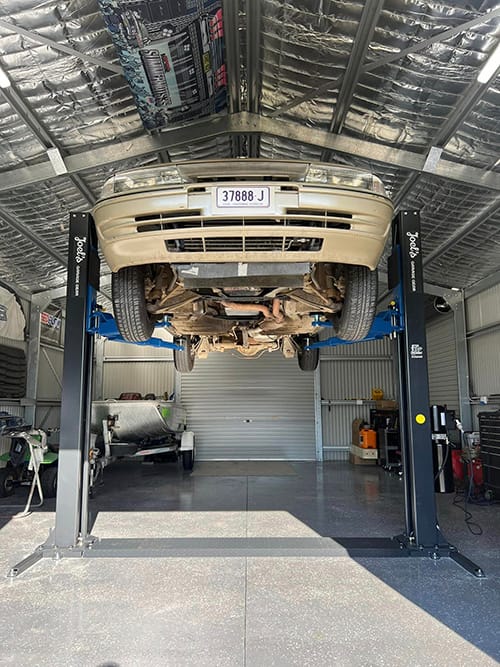

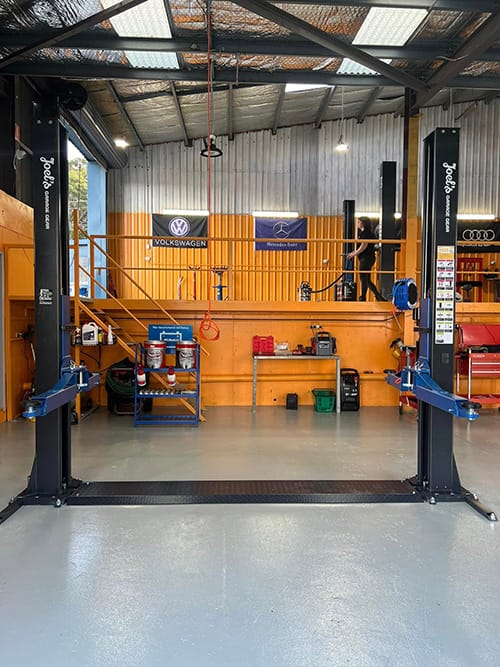

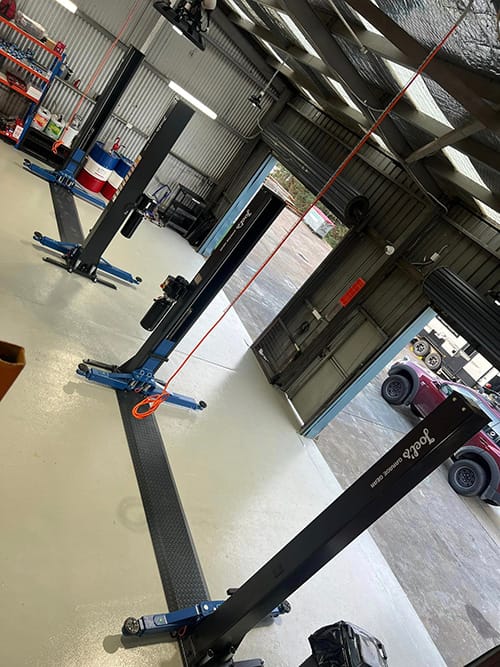

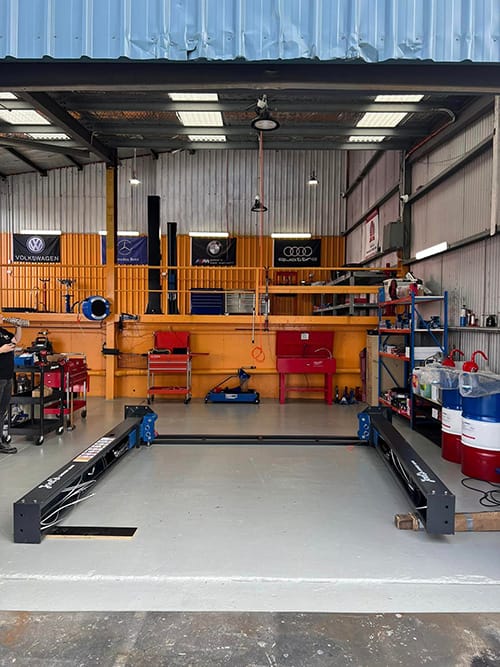

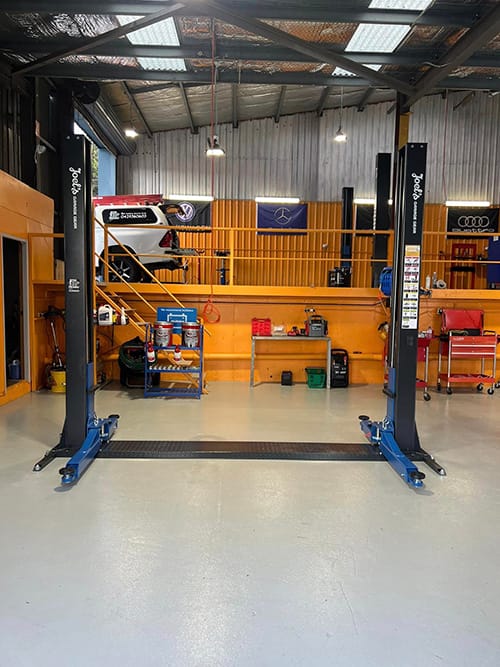

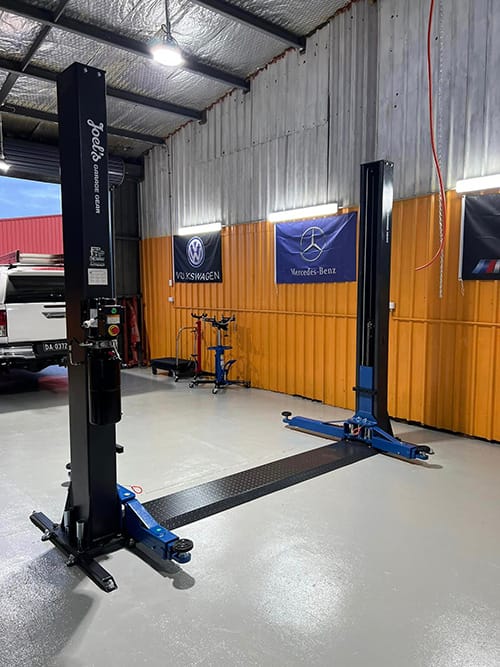

Product Photos

Downloads

Step By Step Guide

Installation Guide

WorkSafe Registration Notice
