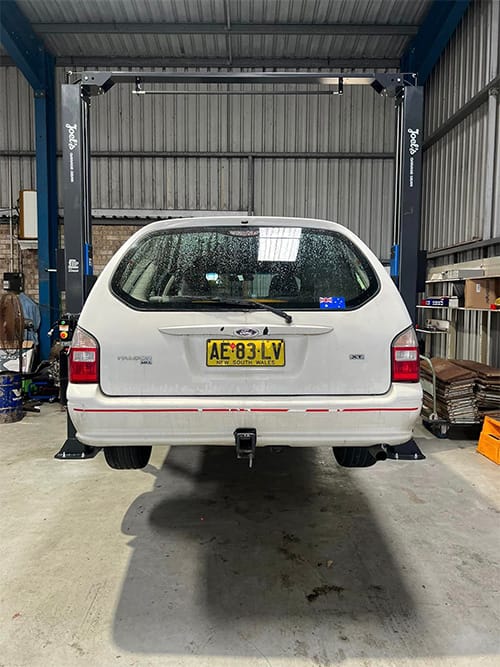

2 Post Hoist – 4.5 Ton Clear Floor

In Stock

$3,300.00 (inc. GST)

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.


Overview


Dimensions suit shed/ workshop use


Single phase 240v motor as standard


No floor plate restrictions


4.5 Ton rating will lift heavy vehicles with ease


Minimum 3.8 metre ceiling height required

Australia’s best selling 2 Post Hoist. Designed to fit a wide range of sheds — It’s the perfect choice for commercial workshops and car enthusiasts that want to get serious about their hobby.

Clear Floor Hoist Features

  • 4500kg/ 4.5 ton safe load limit
  • Lifting height of 1.9m (plus screw pad adjustment and raising adapters)
  • Dual hydraulic cylinders lift the carriages by direct hydraulic force

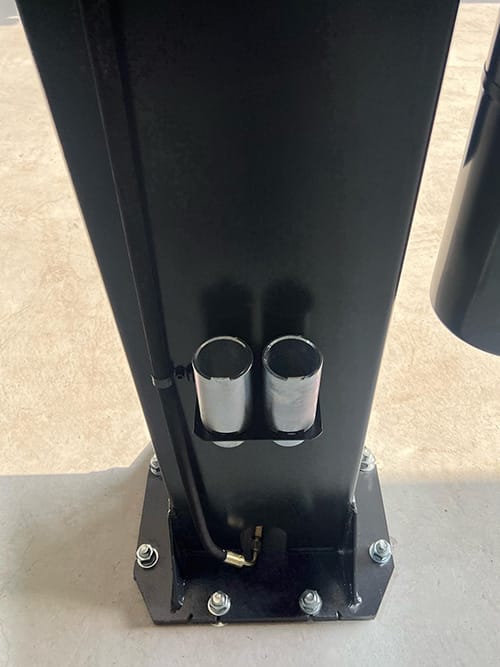

  • Adjustable screw pads and 4 additional raising adapters are included
  • Strong single piece column design
  • Durable powder coated finish
  • Rubber door protectors
  • Symmetric two and three stage arms
  • No floor plate restrictions

Safety Features

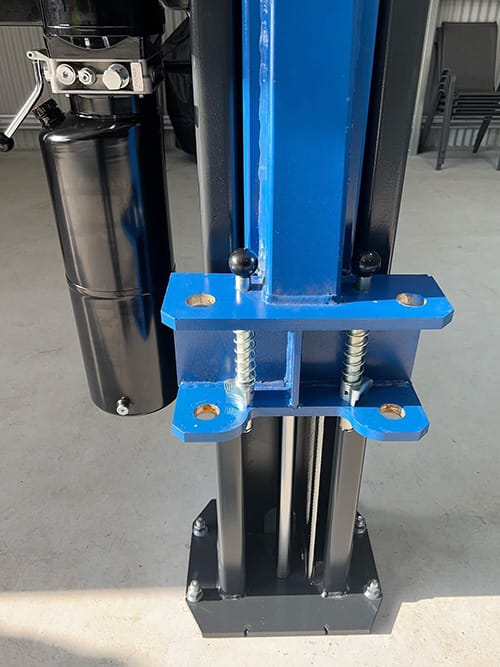

  • Manual safety locking system with safety latches in each column

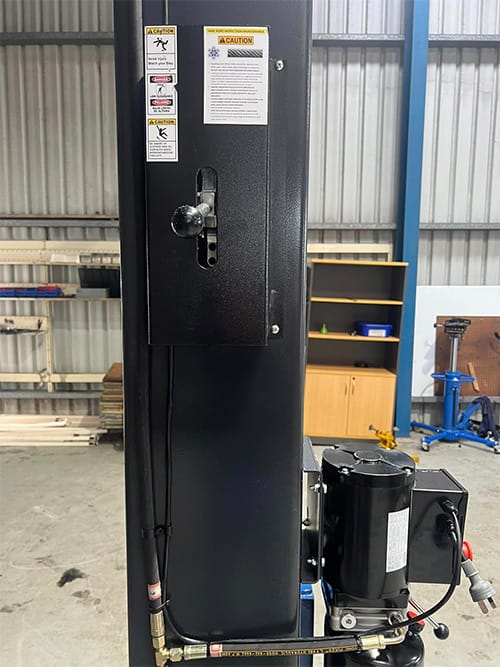

  • Single point release system
  • Heavy duty 6mm thick columns & carriages
  • 10mm steel wire rope equalising cables
  • Anti-surge valve in the hydraulic power unit

What’s Included?

  • 2 post hoist with all bolts, cables, lines and fixings
  • 240V single phase hydraulic power unit
  • Concrete anchor bolts
  • Detailed installation instructions

What’s Not Included?

  • Hydraulic oil
  • Setup of power units electrical connection

Shed Requirements

  • 150mm deep concrete at 32mpa
  • Minimum ceiling height of 3.8m

Warranty & Certifications

  • 3 year Australian warranty* includes structure, hydraulics & electrics
  • Australian WorkSafe registered design
  • CE certification

2 Post Hoist Warranty

3 Years WarrantyWhen you purchase a Car Hoist from us you can guarantee that you are investing in a quality product with the support to match it.

Our Car Hoists come with 3 years warranty* for complete peace of mind.

* Joel’s Garage Gear offers 3 years parts only warranty on all Car Hoists. Warranty claims do not cover incorrect use or installation. See our Terms & Conditions for more information.


Flexible Payment Options Available

Own it now, Pay later with Zip. Choose repayments that suit your lifestyle.

Zip - Own it now, Pay later

Need your equipment now? We offer 12 Months Interest Free Finance*

Humm 90 - 12 Months Interest Free Finance*

Pay in monthly instalments upto 24 months! Available only to eligible ABN holders.

Procuret - Pay in 3 installments*

Specifications

Clear Floor 2 Post Hoist

MOTOR240V 20A SINGLE PHASE
STROKE1910MM
OVERALL HEIGHT3650MM
OVERALL WIDTH3551MM
CARRIAGE HEIGHT1450MM
DRIVE THROUGH CLEARANCE2658MM
SWITCH OFF LEVEL3461MM
LIFTING PAD MINIMUM HEIGHT125MM
LIFTING PAD MAXIMUM HEIGHT155MM
LIFTING TIME60 SECONDS
N.W./ G.W750KGS/ 780KGS
MINIMUM CONCRETE THICKNESS150MM

Material Thickness

CABLES10MM
COLUMNS6MM
CARRIAGES6MM

Freight Information

HOIST3580MM500MM1000MM
TOTAL WEIGHT780KG

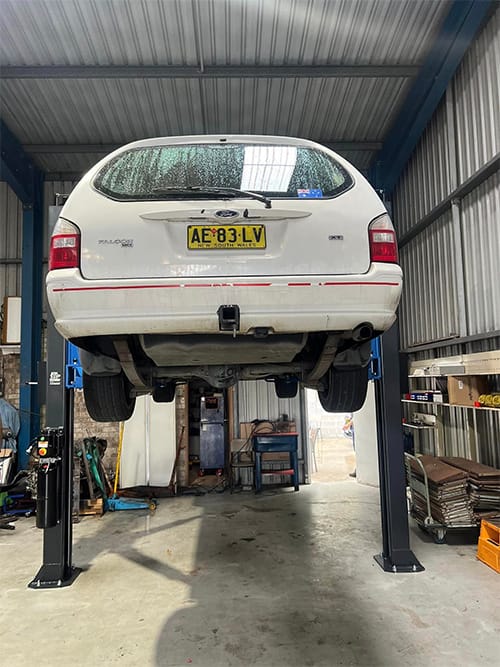

Product Photos

Downloads

Installation Guide

WorkSafe Registration Notice

35 reviews for 2 Post Hoist – 4.5 Ton Clear Floor

  1. Marden Taylor

    Had a mate help me stand the posts up and from there I knocked it together in 8 hours. The supplied docs are a little light on in detail (visually and technically) so watch Damian’s video (Shedsesh) a few times. They have fixed the powder coating issue on the legs as my pins slip in no problem. Used my mower to pull in a Hiace van (SBV model) and started the process of working under my very first hoist. Have been working on my own cars for 40 years and not having to lay down is AWESOME.

    Verified purchase from Khancoban NSW

  2. Michael Kemp

    I’ve had my hoist for about a year now, time for a review.

    Firstly the service and backup was great. Unfortunately I had a broken pick up pipe in the hydraulic unit, an overzealous factory assembler cracked it we guess. The replacement pipe arrived pronto! The hydraulic pack is otherwise excellent Bucher quality.

    The hoist is superb quality and works really well.

    It does however take a bit of patience setting up. My hint to any ‘newbie’ like I was is to give the guys a call about getting the safety cables set up properly, five minutes on the phone is time well spent.

    The only minor issue; I had to give my safety release handle a bit more travel (by bending the handle up a bit) as it was impossible to get the correct adjustment, it was either not releasing the pawl far enough (it would catch on the far side pawl when lowering) or it would not ‘click’ when raising. Simple fix.

    I would very highly recommend both the product and the team that sell them. Thanks guys!

    Verified purchase from Whitlands, VIC

  3. Brett Marshall

    Spent the day installing my new 4.5T 2 post hoist. It is amazing! Quality is spot on (from what I know about car hoists).

    Started about 9.30am and had it working by 6pm. Like most have said the hoist is great but the instructions need work. I just watched Damiens video to work it all out.

    The Joel’s Garage Gear team is fantastic to deal with over the phone and the delivery was exactly how they said it would be.

    One thing to keep in mind is that this is a heavy item and you need to work out in advance how you are going to lift and move it.

    All up I am wrapped to finally have a hoist in my shed, thanks Joel’s Garage Gear.

    Verified purchase from Sydney NSW

  4. Scott Watterson

    Extremely happy with my 4.5T Clear Floor hoist. Very fast shipping and great quality product!

    Verified purchase from Adelaide SA

  5. Peter Snape

    Top quality hoist & something I should have bought years ago. My only complaint is the vague pictures in the manual.

    Verified purchase from Sydney NSW

  6. Peter Daffey

    Hi team, I have my hoist up and running! It’s the best hoist on the market, Joel’s Garage should be proud to sell it. Cheers πŸ‘Œ

    Verified purchase from Hervey Bay QLD

  7. James Tracy

    Joel’s Garage Gear are a great company to deal with. Installing my 4.5T Clear Floor Hoist was quite simple and straightforward. There was a little bit of damage during transit but a quick message to the guys and it was sorted out in no time! Highly recommend, will buy again!

    Verified purchase from Caboolture QLD

  8. Scott Findlay

    Just fitted and wired up my 4.5T clear floor hoist, couldn’t be happier. Delivered fast and well packaged. The instructions are a bit simple but anyone with basic mechanical knowledge will not have a problem. The operation is smooth, great height, well built and looks great! Highly recommended!

    Verified purchase from Nowra NSW

  9. Andrew Hodgson

    Purchased this hoist from Joel and was not disappointed! I picked the unit up from the freight depot in Perth and took it home to find the hydraulic unit was damaged in transit.

    Emailed both Joel’s Garage Gear and the transport company, the team from Joel’s Garage Gear were quick to respond and sent out a new unit ASAP to my door — fantastic customer support!

    Great product, great price, easy install and fantastic customer service. What more can you ask for? Cheers guys!

    Verified purchase from Perth WA

  10. Dillon Mcauliffe

    We run two of these in our workshop, having at least three cars on each hoist each day for the last three years. Faultless!

    Verified purchase from Geelong VIC

  11. Damion Lyon

    It has been a dream of mine to put a car hoist in the shed for as long as I can remember. I couldn’t have chosen a better one than this 2 Post Hoist from Joel’s Garage Gear! The build quality is superb and their customer service is fantastic.

    I put together an installation video which should give anyone else looking to buy one more of a detailed look and understanding on how it all goes together.

    Verified purchase from Melbourne VIC

  12. Timothy Lorlano

    Got one of these installed a few months ago and it has been great so far! I use it weekly and its done exactly what its supposed to do. Strong unit too – Absolutely no visible flex or deformation when loaded!

    Verified purchase from Adelaide SA

  13. Jesse Nicholls

    Bloody awesome piece of gear! Thanks Joel’s Garage. I would definitely recommend this hoist to anyone.

    Verified purchase from Myrtleford VIC

  14. CQ Automotive

    Works great! Better than the other hoists in my workshop and it was half the price.

    Verified purchase from Rockhampton QLD

  15. Robert Vucur

    Awesome hoist for the price! Very strong and solid build. Got my 4.5T fitted this week and will never look back. Recommended it to all my mates as well. πŸ™‚πŸ‘

    Verified purchase from Melbourne VIC

  16. Clint Sneddon

    Picked up my 2 Post Hoist this week, great people and easy to deal with! Highly recommend them for all your garage gear.

    Verified purchase from Melbourne VIC

  17. Colin Edstein

    Easy and quick transaction, quality looks good compared to some hoists I’ve used over the years and those hoists were dearer.

    I had it fitted by a local hoist installer in about 3 hours. Awesome to be able to get under a car without being on the ground.

    The car hoist works well and seems solidly built. I rang them a couple of times before deciding on this hoist and nothing was an issue.

    Verified purchase from Sydney NSW

  18. Corey Day

    Awesome product and excellent customer service!

    Verified purchase from Melbourne VIC

  19. Jake Harker

    The instructions are a bit vague but it’s a ripper quality product!

    Verified purchase from Melbourne VIC

  20. Shaun Dunford

    Very easy transaction, especially in 2020! Super helpful with any queries and nothing was too much trouble. This is my second hoist now. Both times I have seen a quality product that was easy to install and operate! Highly recommend. Why don’t you have a hoist yet? Don’t be on your back under a car!

    Verified purchase from Brisbane QLD

  21. Adam Nicholls

    I recently purchased a hoist from Joel’s Garage Gear for my Dodge Dart Drag Car. I had to ring them once it was installed to ask where it was made? The quality is so good! I recommend Joel’s Garage Gear for equipment any day.

    Verified purchase from Sydney NSW

  22. Benjamin Ian

    Easy to set up, had a fella help me stand the columns up, done the rest myself. Going to make working on cars a heap easier from now on πŸ‘ Quality is good, no complaints here!

    Verified purchase from Melbourne VIC

  23. Adrian Beacham

    I purchased one of these hoists and installed it myself. Fortunately I have 200mm thick concrete so the only challenge was drilling the holes. Its a fantastic unit and does the job well.

    Verified purchase from Adelaide SA

  24. Adam Haldane

    Got my 4.5 ton hoist installed today. Thanks to Joel Smith and his crew for the good work. This is something I should have bought years ago! Cheers

    Verified purchase from Melbourne VIC

  25. Ross Gibbons

    Bought one and it fitted exactly as Joel said. 2 years on and it’s the most used bit of gear in my workshop. I plan on visiting him for some more workshop equipment real soon.

    Verified purchase from Melbourne VIC

  26. Hayden Maynard

    Great hoists, I’ve bought two so far πŸ‘Œ

    Verified purchase from Adelaide SA

  27. Chris Hillier

    I bought the 4.5 Ton Clear Floor Hoist, love it. Installed it myself, easy job. Even dealing with these people was easy. Thanks again Andrew!

    Verified purchase from Sydney NSW

  28. Matthew Malone

    Joel is a legend and his gear has performed faultless for the past 2 years!

    We have a 4500kg 2 post clear floor hoist and adjustable oil drain.

    The hoist was a breeze to assemble, fit up was perfect and the instructions were clear and easy to read.

    The hoist has had GU Patrols, 80, 100 and 200 series Land Cruisers suspended with no issues what so ever.

    I liked the hoist that much I’ve purchased the same hoist off a good friend that’s moving house and can not take his with him.

    Thanks Joel, I will definitely be back.

    Verified purchase from Brisbane QLD

  29. Julian Keating

    I have purchased the 4.5T Clear Floor and other workshop equipment from Joel’s Garage Gear. Extremely happy with my purchases and they are fantastic to deal with. Great company, would recommend.

    Verified purchase from Melbourne VIC

  30. Ken Miley

    Purchased a 4.5 Ton Clear Floor Hoist.

    Made the purchase for hobby work at home, so price was a major factor. I am very impressed with the quality of this hoist!

    The welds are perfect, and it is well thought out. Heavier steel than some of the popular brands I have inspected.

    Joel promptly sorted a missing knob when the hoist was delivered.

    All in all great product, and great service from Joel’s Garage Gear.

    Verified purchase from Melbourne VIC

  31. Paul Broomy

    Great products, great support. Very happy with our hoist and other items after being completely underwhelmed by others in the industry with no return contact. My advice is don’t even bother looking elsewhere or shopping around, end your search here and buy from Joel’s.

    Verified purchase from Melbourne VIC

  32. Braden Joyce

    The 4.5T Clear Floor is a great hoist. It lifts my heaviest car. Highly recommended. Thanks Joel!

    Verified purchase from Melbourne VIC

  33. Ben Harkins

    Awesome product. Great pricing. Fast shipping. Highly recommended!

    Verified purchase from Adelaide SA

  34. Rhys Ellis

    Bought a 4.5 ton 2 post clear floor, great service had someone come up and install which also was a great bloke was done in a couple of hours, highly recommend, love the hoist πŸ‘ŒπŸΌ

    Verified purchase from Melbourne VIC

  35. Anthony Rix

    Really happy with the quality of my 4.5T clear floor hoist, and fast freight to SA too.

    Verified purchase from Adelaide SA
