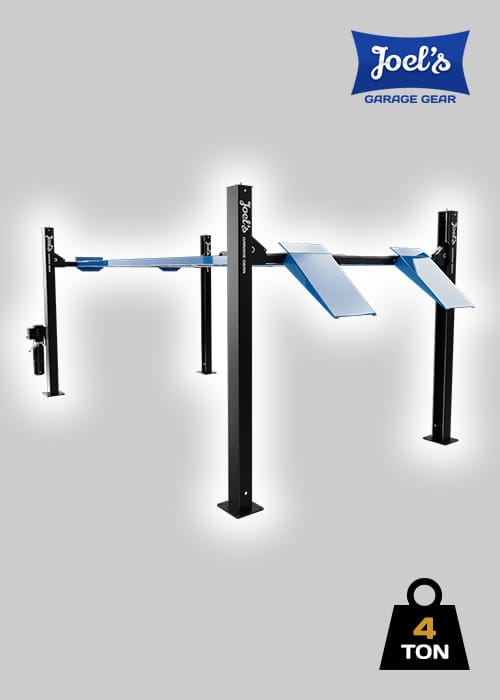

4 Post Hoist – 4 Ton Extra Long & High

In Stock

$4,399 (inc. GST)

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.


Warehouse Stock
  • Melbourne: In Stock Order now for dispatch within 48 hours
  • Brisbane: In Stock Order now for dispatch within 48 hours
  • Perth: In Stock Order now for dispatch within 48 hours
  • Sydney: Pre-order Order now for dispatch on 11/12/24
  • FREE Click & Collect from our warehouses!
SKU: JGG-4PSTXXL Categories: , ,

Overview


Dimensions suit shed/ workshop use


Single phase 240v motor as standard


Extra clearance for larger vehicles


4 Ton rating will lift 4WD vehicles with ease


Minimum 3.9 metre ceiling height required

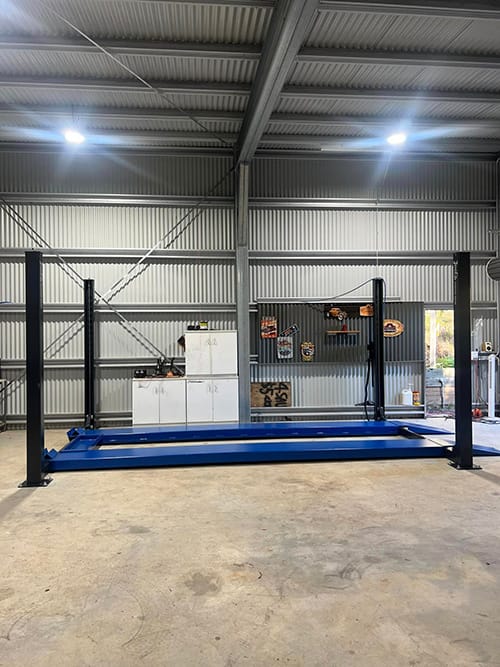

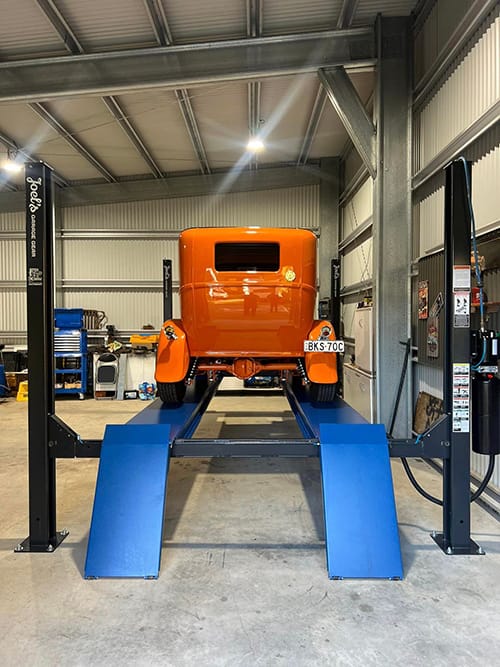

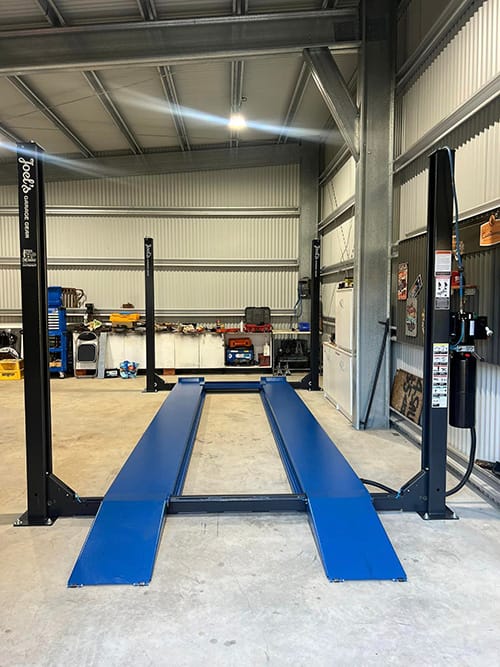

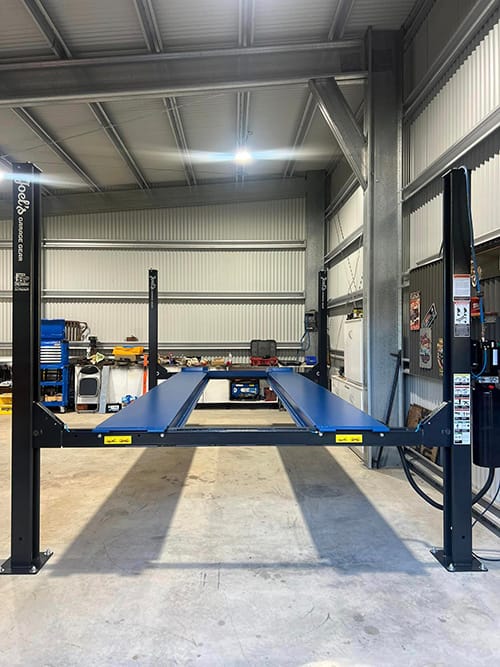

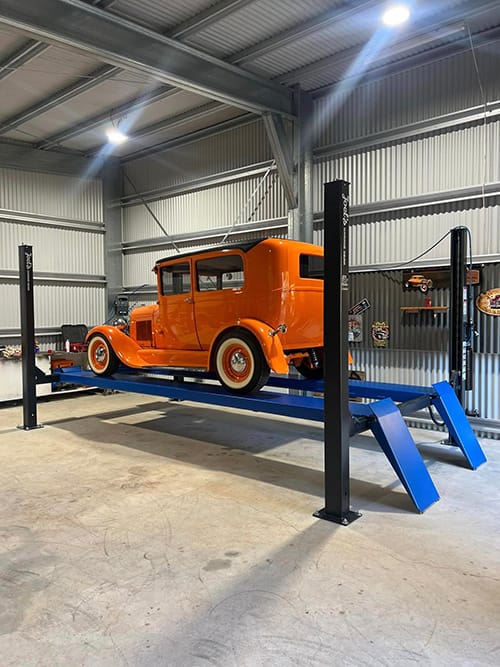

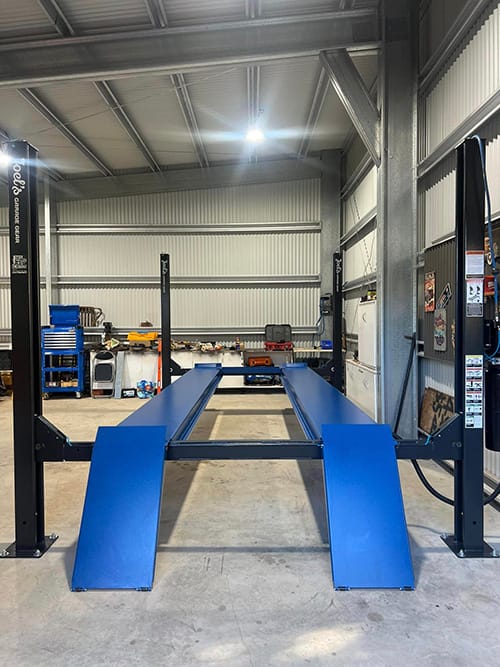

This extra long and high 4 Post Hoist is ideal for working on large vehicles and increasing the parking space in your shed. It is significantly larger than our 4 Ton Standard 4 Post Hoist whilst maintaining the same width.

4 Post Hoist Features

  • 4000kg/ 4 ton safe load limit

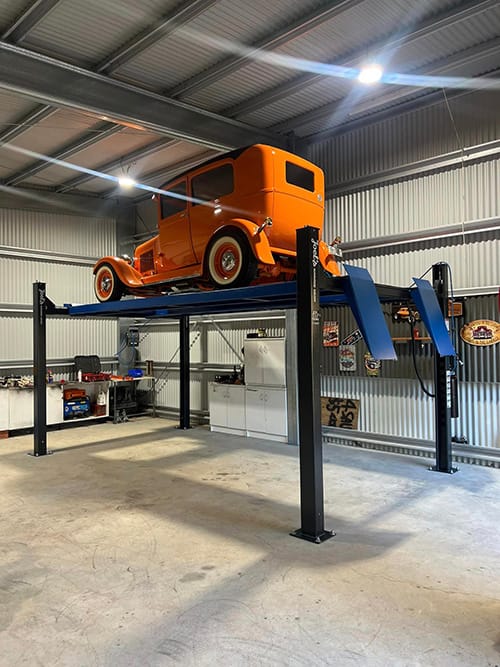

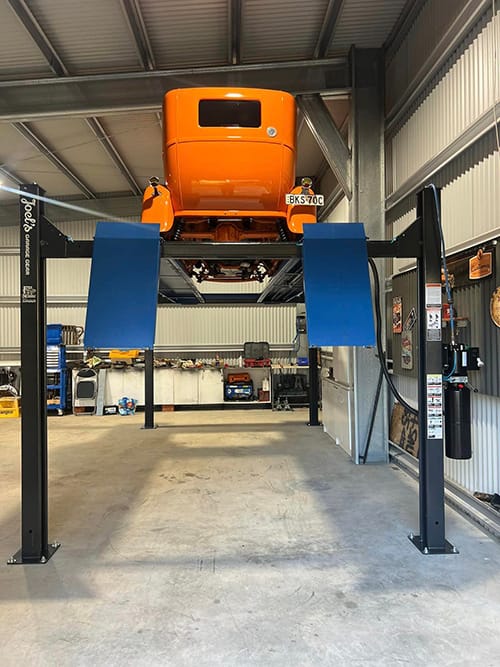

  • Lifting height of 2.2m
  • A single hydraulic cylinder lifts the runways by pulling the cables
  • Runways can be adjusted between two track settings by removing 4 bolts and sliding one over
  • Keep your car off the ground away from being dented, scratched and touched
  • Durable powder coated finish

Safety Features

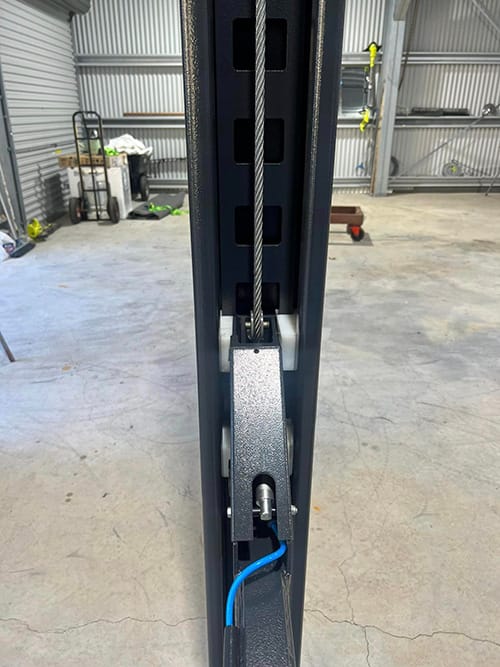

  • 4 point pneumatic safety lock releases
  • Additional secondary safety lock when weight comes off the cables
  • Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
  • Heavy duty 6mm thick cross beams and 5mm thick runways
  • 10mm steel wire rope equalising cables

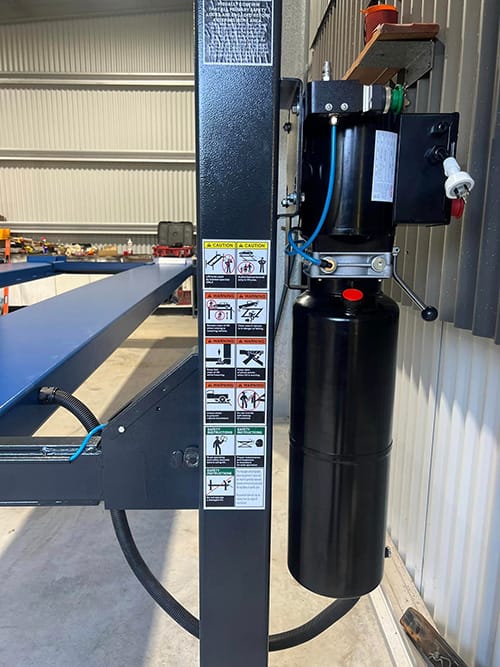

  • Anti-surge valve in the hydraulic power unit

What’s Included?

  • 4 post hoist with all bolts, cables, lines and fixings

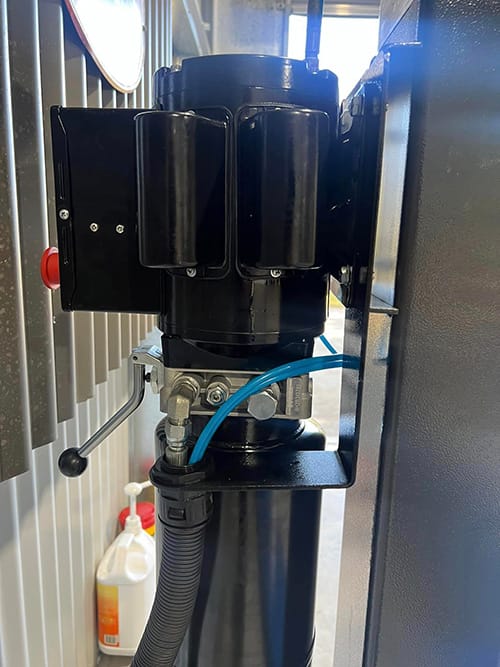

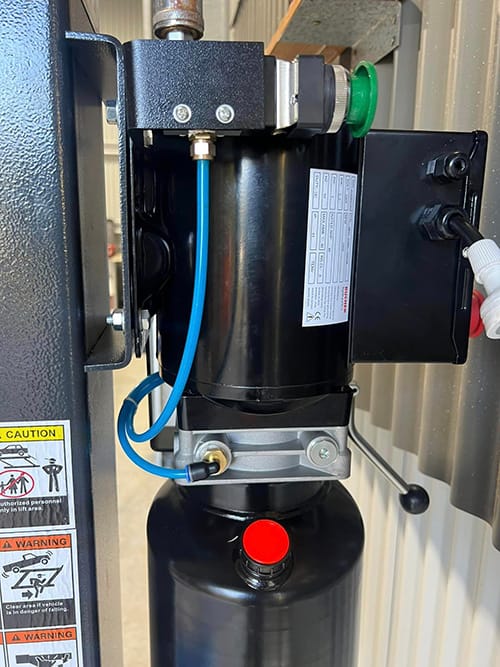

  • 240V single phase hydraulic power unit

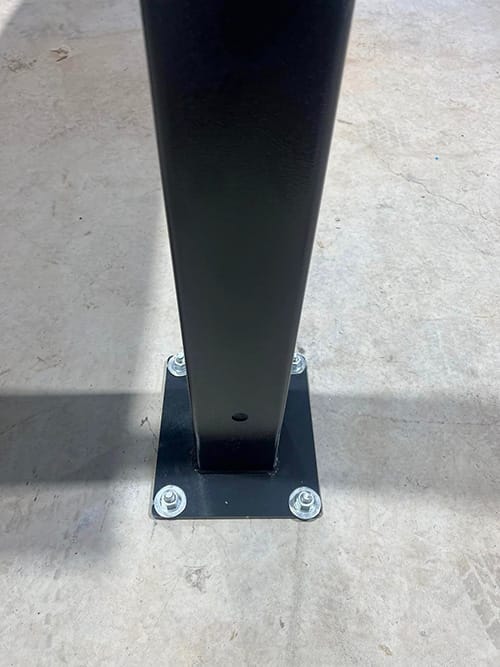

  • Concrete anchor bolts
  • Detailed installation instructions

What’s Not Included?

  • Hydraulic oil
  • Setup of power units electrical connection
  • Compressed air supply

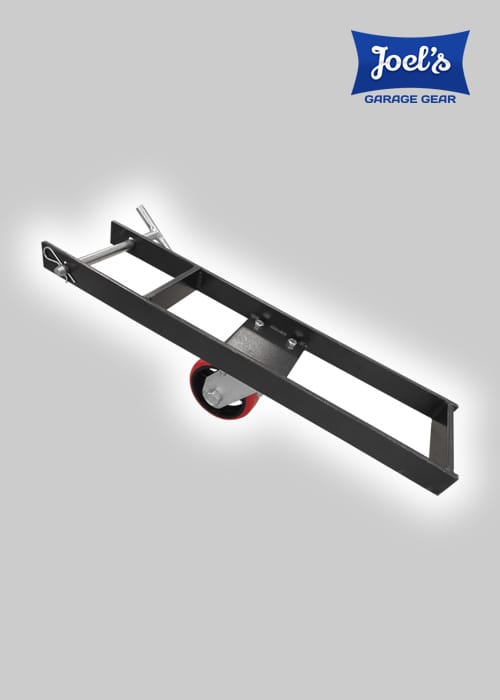

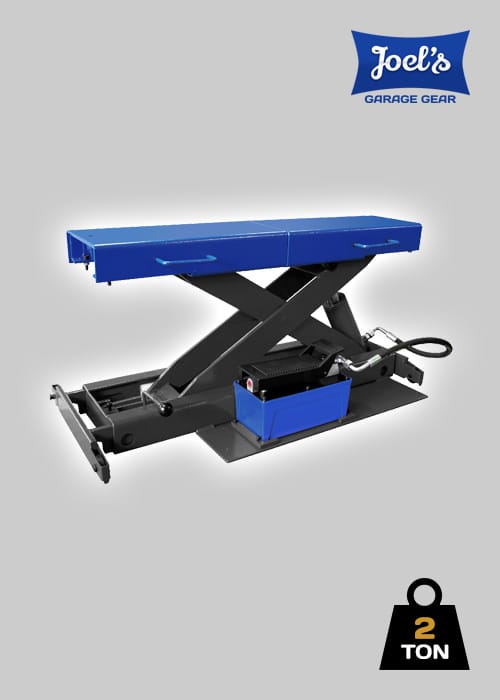

Optional Accessories

Shed Requirements

  • 125mm deep concrete at 32mpa
  • Minimum ceiling height of 3.9m

Warranty & Certifications

  • 3 year Australian warranty* includes structure, hydraulics & electrics
  • Australian WorkSafe registered design
  • CE certification

4 Post Hoist Warranty

3 Years WarrantyWhen you purchase a car hoist from us you can guarantee that you are investing in a quality product with the support to match it.

Our 4 Post Hoists come with 3 years warranty* for complete peace of mind.

* Joel’s Garage Gear offers 3 years parts only warranty on all car hoists. Warranty claims do not cover incorrect use or installation. See our Terms & Conditions for more information.


Sarah AnsonSarah Anson
13:45 09 Nov 24
Great customer service from start to finish and installer recommended we move the hoist and are happy we took that advice.Hoist works perfectly.
Sam VecchioSam Vecchio
06:07 07 Nov 24
I only received only one set of hoist rams
Julie SheridanJulie Sheridan
02:16 07 Nov 24
Service, prices, quality, delivery, easy to talk to. 5 stars, highly recommend
Steve IvinsSteve Ivins
01:17 03 Nov 24
Hi, the staff members are friendly and knowledgeable. I had to preorder my scissor lift and was contacted when it had cleared Customs.Assembly was simple and after adding oil it is up and running.The best tool I've ever owned.Thank you.
Proffessionalism at its best
Peter BrownPeter Brown
05:55 29 Oct 24
Easy to order and arrived on time. When I picked up my hoist the lady there was so helpful.
Matt TeumaMatt Teuma
07:29 28 Oct 24
Bronson ercegBronson erceg
00:17 25 Oct 24
Great service helped me put tool box on my trailer.And a great product will shop there again .Gold Coast store
Kent SmithKent Smith
07:20 24 Oct 24
Installer was on time and did a great job on the installation. Will definitely be buying more of your products
Bill AbdouBill Abdou
07:23 23 Oct 24
Joels Garage Gear is top quality gear and won't use anything else, highly recommended
Rob BRob B
06:59 23 Oct 24
Thanks to Joel garage and there sales man Andrew for organising my hoist for my detailing shop. Andrew was a huge help in getting the hoist organised and delivered on time . Great people to deal with.
Benjamin ShoreBenjamin Shore
07:18 22 Oct 24
Very HappyWent together easyWorking wellThanks
Adam EldickAdam Eldick
07:55 21 Oct 24
Absolute legends! Excellent customer service. I had some issues on my end and needed assistance, Andrew, Ryan and Henry helped me right through to delivery. Very professional service. Absolutely love my new tool box. Quality exceeded expectation considering the price tag. 100% recommend. Thanks team.
Nick MurphyNick Murphy
06:35 21 Oct 24
Awesome product. Quick delivery and easy to install. Very happy with Joel’s garage gear. Would recommend to anyone. A+++++
Michael WellsMichael Wells
06:43 16 Oct 24
Neal CNeal C
15:43 13 Oct 24
Excellent quality tool trolley. Great value for money. Excellent workmanship. Highly recommend this tool trolley. Delivery was quick and easy to pickup. Look no further. This is the tool trolley for everyone.
Yousif CorfiatisYousif Corfiatis
04:36 12 Oct 24
The boys at the pickup location had excellent communication for a smooth pickup transaction. Their bead roller works great and is really heavy duty and robust
Andrew PoelwykAndrew Poelwyk
06:43 11 Oct 24
Good to deal with very happy with the product
Scott JonesScott Jones
11:26 10 Oct 24
Great communication. Excellent service and great products.
Jordan CarterJordan Carter
12:31 09 Oct 24
Great gear and service
Charlie JohansonCharlie Johanson
06:51 24 Sep 24
Great product at a great price. Super friendly team that is really easy to deal with. I’ve only given them 5 stars because it wouldn’t let me give them 7.Highly recommended.
Chris CmrlecChris Cmrlec
04:24 09 Sep 24
Awesome range of products and excellent service. Purchased two sets of 4t jack stands, very happy with the communication and delivery. The product itself is spot on too, very well made. Highly recommend.
James PaulJames Paul
04:53 15 May 24
Got a transmission jack and it’s way to low to be easy to use, I’m average height for an Aussie and the the jack is shorter than me so it’s super awkward to use. Other than that it’s pretty good just such a shame it’s to short.The photo is it at full extension still 100mm to short to use so I’m taking the hoist down and awkwardly removing it he gearbox giving me a sore back.
Jose CarreiraJose Carreira
10:10 10 Apr 24
Will have to say was good dealing with Joel's garage in sales and delivery, they are people of there word very happy with the product of a two post hoist
Michael HicksMichael Hicks
10:31 14 Feb 24
Matt CurnowMatt Curnow
07:10 02 Dec 23
David HandleyDavid Handley
03:02 02 Dec 23
Quality hoist at a fabulous price and expert installation. I couldn’t be happier. A must have for an shed or garage!
Paul BrooksPaul Brooks
08:55 19 Oct 23
Great friendly service
Joseph ThorogoodJoseph Thorogood
03:30 12 Oct 23
Got my 2 post hoist installed today, all went very smoothly, hoist is good quality, can highly recommend!
SteveSteve
12:29 29 Sep 23
I am a hoist installer.I first installed a Joels Garage Gear 4 ton 2 post hoist a few years ago. My customer had purchased the hoist online. I had not heard of Joels.The hoist was solid and seemed quite good quality.I have since installed more Joels Garage Gear Hoists. Several 2 post hoists and a 4 post hoist. The quality is impressive. They are obviously committed to great product development as I can see improvement in quality and design.I have now applied to become one of their registered Hoist Installers.
ron jensenron jensen
00:06 13 Sep 23
Absolute pleasure to deal with, kept me informed on the progress all the way to delivery. Highly recommended to use this company. Will always recommend to my friends. Thanks for the great service Ron
Scott LovettScott Lovett
23:43 13 Aug 23
Great Customer Service and prompt delivery
Mark StoneMark Stone
00:19 27 Jul 23
These guys were great to deal with, hoist arrived promptly and before due date, after sale's information very helpful, and to top it all off the product is fantastic. HIGHLY recommend Joel's
Enzo PozzarEnzo Pozzar
01:17 06 Jun 23
On time delivery, excellent hoist and fair price, easy to assemble, 2.7m clearance between posts is great.
Peter SnapePeter Snape
20:46 13 Aug 21
My original thoughts were to buy a 4 post hoist but because of limited space I opted for the 2 poster from Joels Garage. So glad I did because it's so versatile, especially when my boat needs separating from it's trailer. With over 60 years experience in engineering I find the design and robust construction of my hoist is second to none and can certainly recommend it to prospective buyers. My only gripe is the vague instruction manual and lack of detail.
js_loader

Flexible Payment Options Available

Own it now, Pay later with Zip. Choose repayments that suit your lifestyle.

Zip - Own it now, Pay later

Need your equipment straight away? We offer 12 Months Interest Free Finance*

Humm 90 - 12 Months Interest Free Finance*

Pay in monthly instalments upto 12 months! Available only to eligible ABN holders.

Procuret - Pay in 3 installments*

Dimensions

4 Post Hoist Extra Long & High Model

MINIMUM CONCRETE THICKNESS125MM 32MPA
MOTOR SPECS240V 20A SINGLE PHASE
CLEARANCE BETWEEN POSTS2717MM
MAX TABLE HEIGHT2265MM
POST HEIGHT2600MM
OVERALL WIDTH INCLUDING PUMP3300MM
OVERALL LENGTH NOT INCLUDING RAMPS WHEN DOWN5310MM
OVERALL LENGTH INCLUDING RAMPS WHEN DOWN6070MM
TABLE LENGTH4960MM
EACH TABLE WIDTH480MM
N.W/ G.W910KGS/ 930KGS

Material Thickness

CABLES10MM
CROSS BEAMS6MM
RUNWAYS5MM
COLUMNS4MM

Freight Information

HOISTL: 526CMW: 56CMH: 72CM
TOTAL WEIGHT930KG
Product Packaging

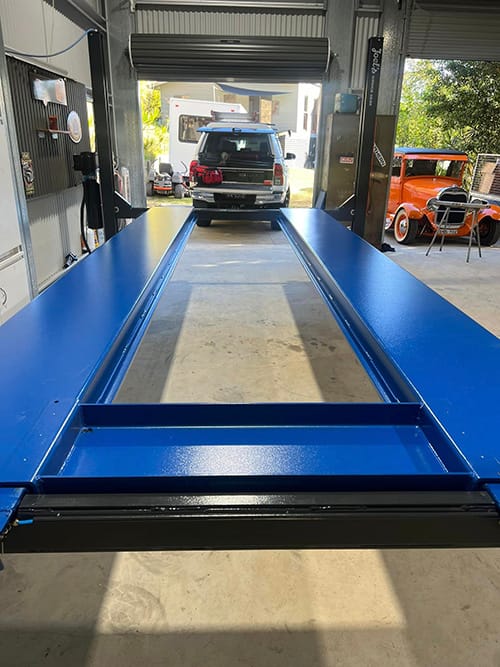

Product Photos

Downloads

Installation Guide/ Owners Manual

WorkSafe Registration Notice

Step By Step Guide
